The 5 inch TFT-LCD screen camera tester is designed for maintenance and installation of analog, HD coaxial cameras, CCTV test and UTP cable test as well as other security equipment. Take the all in one camera tester, making working conditions safer and increasing productivity.
Product Features:
CCTV camera test:
● 5 inch TFT-LCD screen(Not touch screen), 800*480 resolutions
● up to 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
● up to 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● up to 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● up to 8MP EX-SDI, HD-SDI, 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD me
● Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu. NOT support IP camera
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record& playback
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable test:
● UTP cable, telephone cable etc order and connectivity test, can save testing report. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head
Other Functions:
● Media player, video files and MKV/MP4 media files play
● With the high brightness LED lighting, convenient to work in the dark
● Audio in, test whether sound normal
● Power manager function, view 12V supply voltage and power in real time
● 3.7 V /5200mAh Li Battery, after 4 hours charging, working time lasts 6.5 hours

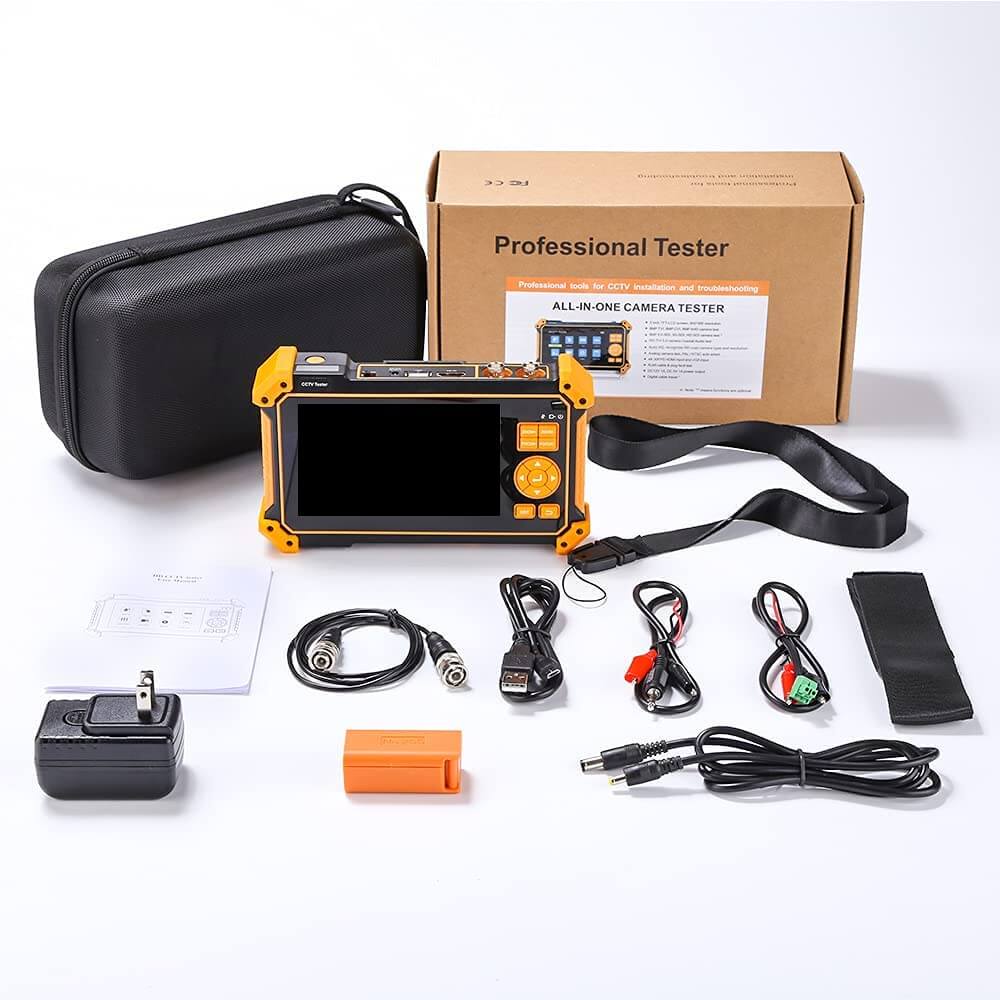

Package Included:
1x CCTV Camera Tester( with Lithium Polymer Battery)
1x Cable Tester
1x Adaptor DC5V 2A
1x Power Cable
1x BNC Cable
1x RS485 Cable
1x Audio Cable
1x Wrist Wrap
1x Tool Bag
Product Features:
CCTV camera test:
● 5 inch TFT-LCD screen(Not touch screen), 800*480 resolutions
● up to 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
● up to 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● up to 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● up to 8MP EX-SDI, HD-SDI, 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD me
● Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu. NOT support IP camera
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record& playback
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable test:
● UTP cable, telephone cable etc order and connectivity test, can save testing report. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head
Other Functions:
● Media player, video files and MKV/MP4 media files play
● With the high brightness LED lighting, convenient to work in the dark
● Audio in, test whether sound normal
● Power manager function, view 12V supply voltage and power in real time
● 3.7 V /5200mAh Li Battery, after 4 hours charging, working time lasts 6.5 hours
Package Included:
1x CCTV Camera Tester( with Lithium Polymer Battery)
1x Cable Tester
1x Adaptor DC5V 2A
1x Power Cable
1x BNC Cable
1x RS485 Cable
1x Audio Cable
1x Wrist Wrap
1x Tool Bag
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
Description
The 5 inch TFT-LCD screen camera tester is designed for maintenance and installation of analog, HD coaxial cameras, CCTV test and UTP cable test as well as other security equipment. Take the all in one camera tester, making working conditions safer and increasing productivity.
Product Features:
CCTV camera test:
● 5 inch TFT-LCD screen(Not touch screen), 800*480 resolutions
● up to 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
● up to 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● up to 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● up to 8MP EX-SDI, HD-SDI, 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD me
● Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu. NOT support IP camera
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record& playback
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable test:
● UTP cable, telephone cable etc order and connectivity test, can save testing report. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head
Other Functions:
● Media player, video files and MKV/MP4 media files play
● With the high brightness LED lighting, convenient to work in the dark
● Audio in, test whether sound normal
● Power manager function, view 12V supply voltage and power in real time
● 3.7 V /5200mAh Li Battery, after 4 hours charging, working time lasts 6.5 hours
Package Included:
1x CCTV Camera Tester( with Lithium Polymer Battery)
1x Cable Tester
1x Adaptor DC5V 2A
1x Power Cable
1x BNC Cable
1x RS485 Cable
1x Audio Cable
1x Wrist Wrap
1x Tool Bag
Product Features:
CCTV camera test:
● 5 inch TFT-LCD screen(Not touch screen), 800*480 resolutions
● up to 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
● up to 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● up to 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu
● up to 8MP EX-SDI, HD-SDI, 3G-SDI test, 1920 x 1080P 50/60 FPS, coaxial PTZ & call OSD me
● Auto HD app, auto recognize HD coax camera type and resolution, support coaxial PTZ & call OSD menu. NOT support IP camera
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record& playback
● HDMI Input, up to 4K 30FPS, support snapshot, video record& playback
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable test:
● UTP cable, telephone cable etc order and connectivity test, can save testing report. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head
Other Functions:
● Media player, video files and MKV/MP4 media files play
● With the high brightness LED lighting, convenient to work in the dark
● Audio in, test whether sound normal
● Power manager function, view 12V supply voltage and power in real time
● 3.7 V /5200mAh Li Battery, after 4 hours charging, working time lasts 6.5 hours
Package Included:
1x CCTV Camera Tester( with Lithium Polymer Battery)
1x Cable Tester
1x Adaptor DC5V 2A
1x Power Cable
1x BNC Cable
1x RS485 Cable
1x Audio Cable
1x Wrist Wrap
1x Tool Bag
