Wsdcam 5 Inch IP Camera Tester 5000Plus Series

Comparison Table:

The newest 5 inch IPS touch screen camera tester is designed for maintenance and installation of IP, analog, HD coaxial cameras as well as other security equipment. The unit supports PTZ control, auto log in and view video. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

You can use this IPC tester to do:

CCTV system installation and maintenance
Network cabling project installation and maintenance
4K H.265 IP camera testing
Video transmission channel testing
PTZ controller
With HDMI/VGA in port, can be a display

Feature:
· 5 inch touch screen, 1920*1080 resolutions
· H.265 & H .264 IP, 4K video display via mainstream
· Display image, create testing report
· Support up to 8MP TVI/8MP CVI/8MP AHD/HD-SDI/8MP EX-SDI camera
· CVBS camera test and PTZ control

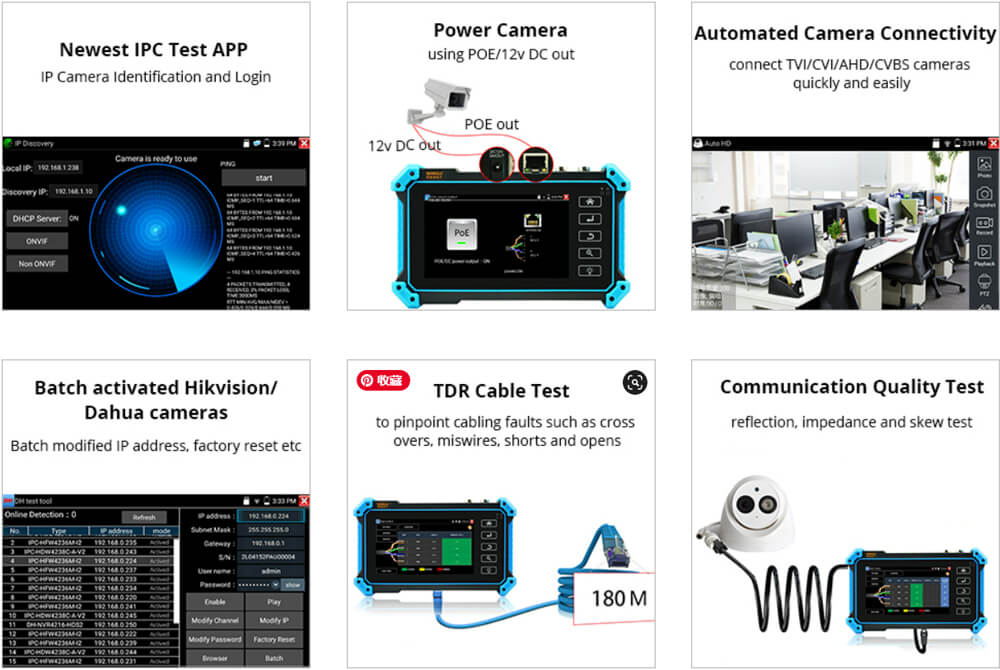

· IPC TEST, HIK test tool (Hikvision camera), DH test tool (Dahua camera)

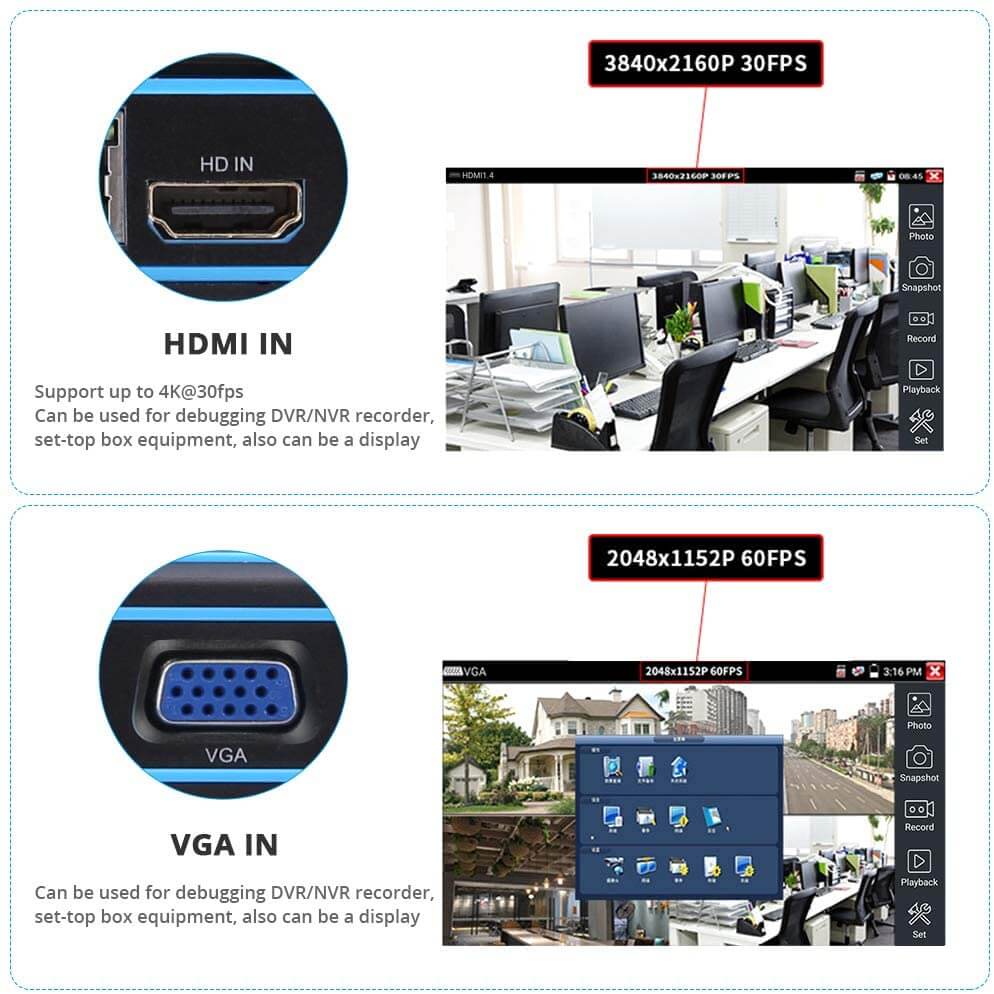

· 4K 30FPS HDMI input and VGA input functions
· IP discovery, just by one key to detect all network cameras IP address
· Rapid video, just by one key to detect all network cameras and auto display
· DC12V 3A power output
· PoE DC48V power output, Max power 25.5W
· Innovative coaxial HD focus, video signal quality test
· Self -update software, you can install apps with android version
· PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
· Built-in WIFI, create WIFI hotspot
· UTP cable tester, RJ45 cable test
· Audio in, support record and save the audio/LED lamp, calculators, music players
· Come with a cable verifier
· 7.4 V /3350mAh Lithium Polymer Battery, lasts about 6 hours
· Dimension/Weight: 183x110x36.5mm/ 0.32kg

Package Included:

· 1x CCTV Camera Tester
· 1x Lithium Polymer Battery
· 1x Cable Tester
· 1x Adaptor DC12V/2A
· 1x Power Cable
· 1x BNC Cable
· 1x RS485 Cable
· 1x Audio Cable
· 1x Wrist Wrap
· 1x Tool Bag
· 1x Use Manual
